WHITE FUSED ALUMINA POWDER FOR UV COATING TOPCOAT
White Fused alumina Chemical Analysis
| Al2O3 | 99.35-99.70% |
| SiO2 | 0.02-0.06% |
| Fe2O3 | 0.02-0.08% |
| Na2O | 0.15-0.40% |
| CaO | 0.01-0.04% |
White Fused alumina Physical Properties
| Color | White |
| Crystal System | Trigonal system |
| Mohs Hardness | ≥9 |
| Melting Temperature(℃) | 2250 |
| Refractory Temperature(℃) | 1900 |
| True Density | ≥3.5 |
| Grain shape | Block, with sharp edges |
| Specific gravity | Approx. 3.9 – 4.1 g/cm3 |
| Bulk density | Approx. 1.75 – 1.99g/cm3 |
White Fused alumina powder for UV coating topcoat sizes and its D50 value
JIS#240-#8000
| Size | D50 Value(um) | Size | D50 Value(um) |
| #240 | 57.0±3.0 | #1000 | 11.5±1.0 |
| #280 | 48.0±3.0 | #1200 | 9.5±0.8 |
| #320 | 40.0±2.5 | #1500 | 8.0±0.6 |
| #360 | 35.0±2.0 | #2000 | 6.7±0.6 |
| #400 | 30.0±2.0 | #2500 | 5.5±0.5 |
| #500 | 25.0±2.0 | #3000 | 4.0±0.5 |
| #600 | 20.0±1.5 | #4000 | 3.0±0.4 |
| #700 | 17.0±1.5 | #6000 | 2.0±0.4 |
| #800 | 14.0±1.0 | #8000 | 1.2±0.3 |
FEPA 230-2000
| Size | D50 Value(um) | Size | D50 Value(um) |
| F230 | 53.0±3.0 | F600 | 9.3±1.0 |
| F240 | 44.5±2.0 | F800 | 6.5±1.0 |
| F280 | 36.5±1.5 | F1000 | 4.5±0.8 |
| F320 | 29.2±1.5 | F1200 | 3.0±0.5 |
| F360 | 22.8±1.5 | F1500 | 2.0±0.4 |
| F400 | 17.3±1.0 | F2000 | 1.2±0.3 |
| F500 | 12.8±1.0 |
Main Applications of white fused alumina
•Bonded Abrasives and Coated abrasives
•Creating a matt finish on glass
• Coated and bonded abrasives grain materials
•Wet and dry blast media,grinding and polishing etc
•Floor/Wall laminates,Wear-resistant
•Thermal spraying/plasma spraying,Processing very hard
•Catalyst Carrier
•Ceramic and Tiles,Ceramic filter plate,ceramic membrane etc
•Grinding wheels,Cup wheels,Whetstone,polishing pads etc
•UV coating topcoat
Haixu abrasives production Sizes
| Fepa | F12 F14 F16 F20 F22 F24 F30 F36 F46 F54 F60 F70 F80 F90 F100 F120 F150 F180 F220 F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500 F2000 |
| JIS | #12 #14 #16 #20 #22 #24 #30 #36 #46 #54 #60 #70 #80 #90 #100 #120 #150 #180 #220 #240 #280 #320 #360 #400# #500 #600 #700 #800 #1000 #1200 #1500 #2000 #2500 #3000 #4000 #6000 #8000 |
| TOCT | 4# 3# M28 M20 M14 M10 M7 |
Packaging:
1MT big bag or 25kgs bag, Pallet available
 |  |  |  |
| 25kgs bags in English | 1000KGS PVC BAG | 25kgs pvc bags+1mt big bag | 25kgs pvc bags+pallet |

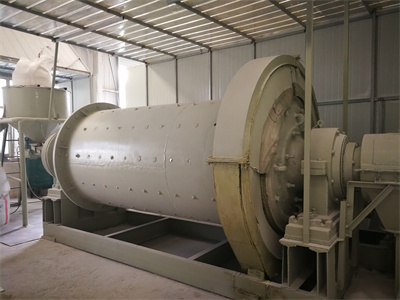

Prodution lines
 |  |  |  |
